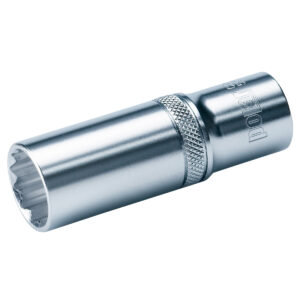

1/2” 12-kant toppe – tommer
ANSI B107.
Udførelse: Forkromet og højglanspoleret. Materiale: Chrome-vanadium stål.
Udførelse: Forkromet og højglanspoleret. Materiale: Chrome-vanadium stål.

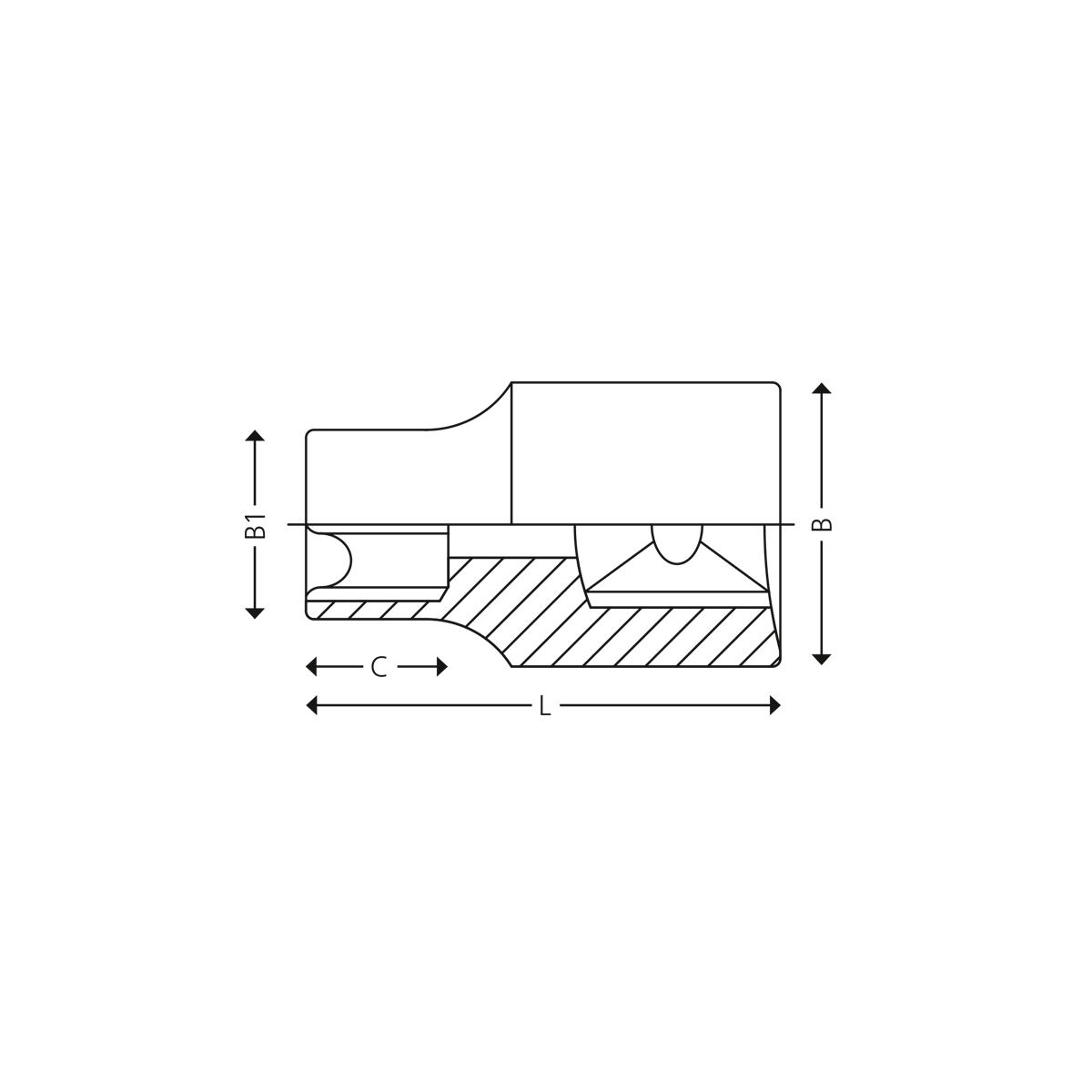

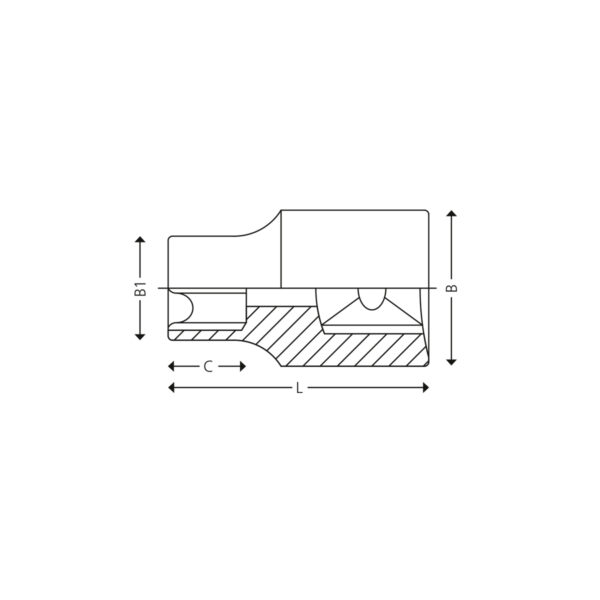

Str. ” | Vare nr. | B mm | B1 mm | C mm | L mm | Vægt (g) | Pris Inkl. moms | ||
---|---|---|---|---|---|---|---|---|---|
3/8” | 5012-2112 | 21,8 | 15,0 | 12 | 38 | 49 | 33,25 kr. |
|
|
13/32 | 5012-2113 | 21,8 | 15,7 | 12 | 38 | 50 | 33,25 kr. | ||
7/16 | 5012-2114 | 21,8 | 16,3 | 12 | 38 | 50 | 33,25 kr. |
|
|
15/32 | 5012-2115 | 21,8 | 17,6 | 12 | 38 | 50 | 33,25 kr. | ||
1/2 | 5012-2116 | 21,8 | 18,8 | 12 | 38 | 51 | 33,25 kr. | ||
9/16 | 5012-2118 | 21,8 | 20,4 | 12 | 38 | 53 | 33,25 kr. | ||
19/32 | 5012-2119 | 20,7 | 21,6 | 12 | 38 | 54 | 35,00 kr. | ||
5/8 | 5012-2120 | 21,5 | 22,9 | 12 | 38 | 61 | 35,25 kr. |
|
|
21/32 | 5012-2121 | 22,0 | 24,0 | 12 | 38 | 64 | 39,50 kr. | ||
11/16 | 5012-2122 | 22,0 | 24,0 | 12 | 38 | 68 | 40,00 kr. |
|
|
3/4 | 5012-2124 | 23,0 | 26,0 | 14 | 38 | 73 | 40,00 kr. | ||
25/32 | 5012-2125 | 24,0 | 27,9 | 14 | 38 | 86 | 41,25 kr. | ||
13/16 | 5012-2126 | 25,0 | 28,0 | 14 | 38 | 82 | 42,50 kr. | ||
7/8 | 5012-2128 | 26,0 | 30,0 | 14 | 38 | 106 | 45,25 kr. | ||
15/16 | 5012-2130 | 28,0 | 32,0 | 16 | 38 | 121 | 47,00 kr. | ||
1 | 5012-2132 | 30,0 | 34,0 | 16 | 38 | 150 | 67,75 kr. | ||
1 1/16 | 5012-2134 | 30,0 | 36,0 | 18 | 38 | 168 | 68,50 kr. | ||
1 1/8 | 5012-2136 | 32,0 | 38,0 | 20 | 38 | 205 | 72,00 kr. | ||
1 3/16 | 5012-2138 | 34,0 | 40,0 | 22 | 38 | 225 | 75,25 kr. | ||
1 1/4 | 5012-2140 | 36,0 | 42,0 | 22 | 38 | 225 | 81,25 kr. |
