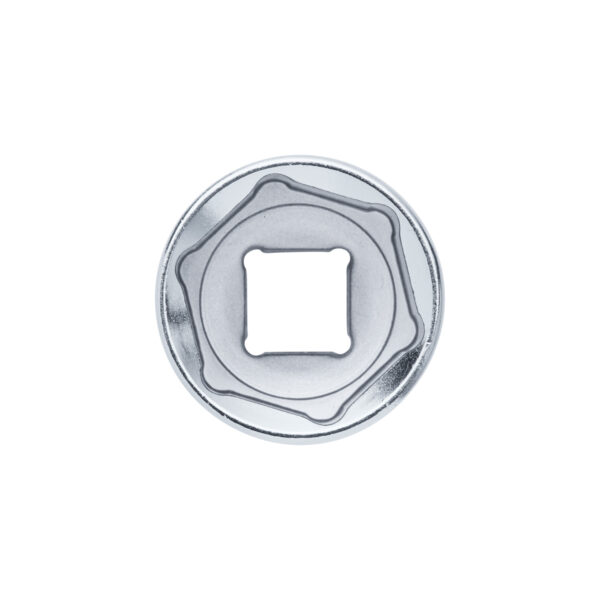

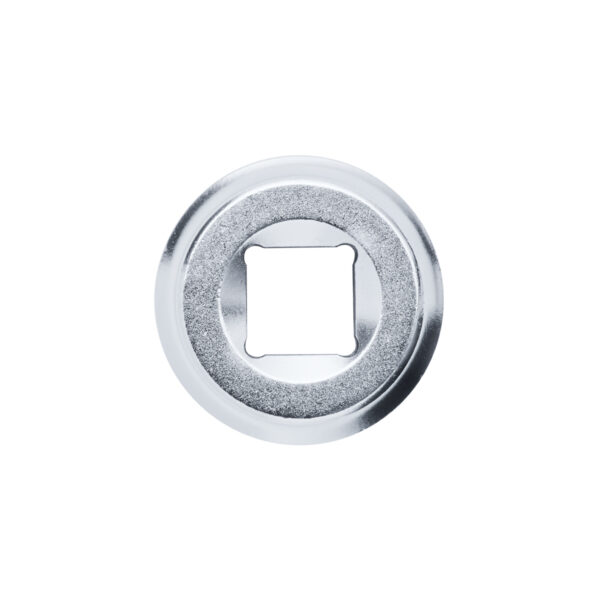

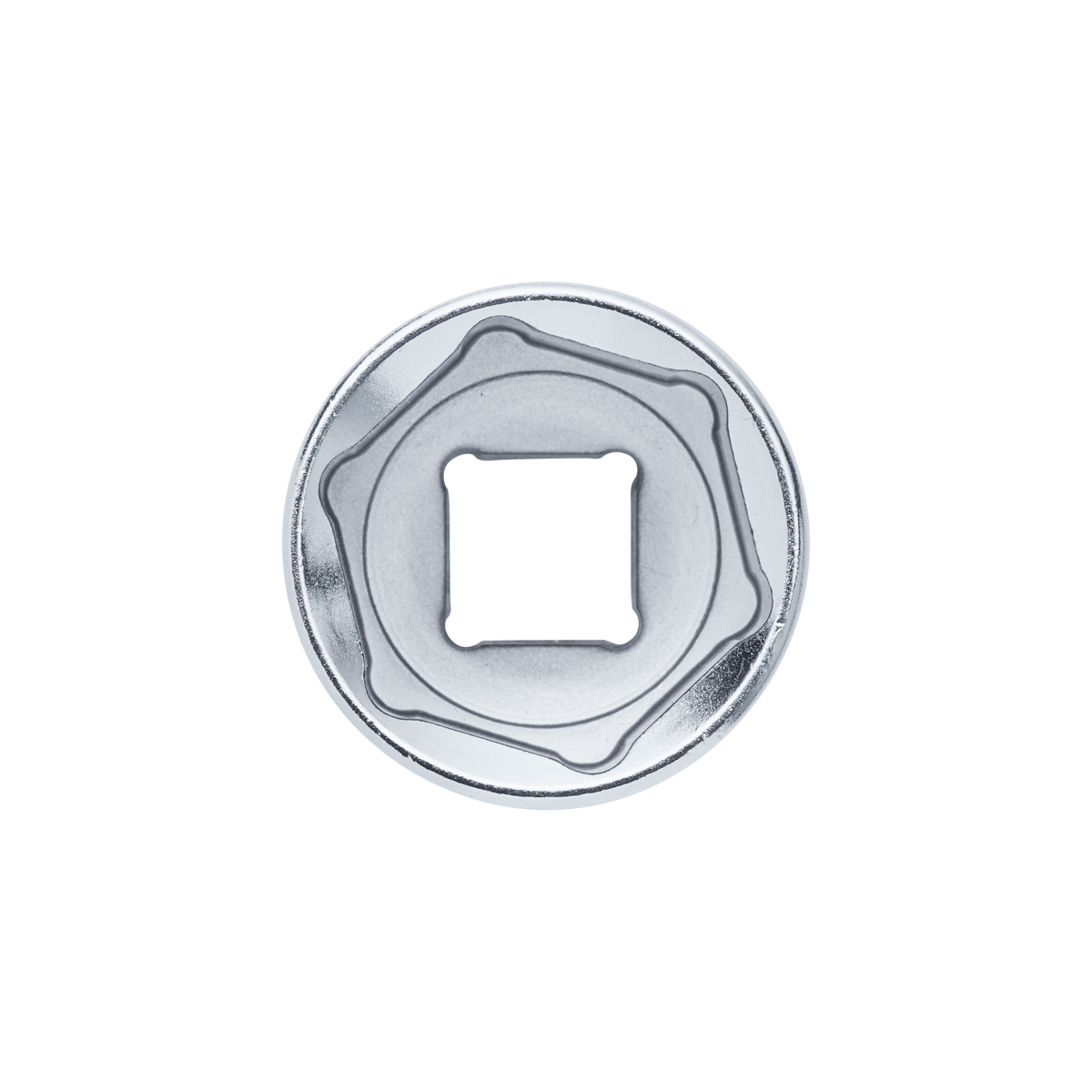

1/2” 6-Kant lange toppe – mm
ISO 2725-1, DIN 3124
Udførelse: Forkromet og højglanspoleret. Materiale: Chrome-vanadium stål.
Udførelse: Forkromet og højglanspoleret. Materiale: Chrome-vanadium stål.
Str. mm | Vare nr. | B mm | B1 mm | C mm | L mm | Vægt (g) | Pris Inkl. moms | ||
---|---|---|---|---|---|---|---|---|---|
10 | 5012-4010 | 22,0 | 15,0 | 12 | 77 | 96 | 59,50 kr. | ||
11 | 5012-4011 | 22,0 | 16,3 | 12 | 77 | 101 | 59,50 kr. | ||
12 | 5012-4012 | 22,0 | 17,6 | 12 | 77 | 107 | 59,50 kr. | ||
13 | 5012-4013 | 22,0 | 18,8 | 12 | 77 | 109 | 59,50 kr. | ||
14 | 5012-4014 | 22,0 | 20,4 | 15 | 77 | 112 | 59,50 kr. | ||
15 | 5012-4015 | 20,7 | 21,6 | 15 | 77 | 109 | 59,50 kr. | ||
16 | 5012-4016 | 21,5 | 22,9 | 15 | 77 | 112 | 63,25 kr. | ||
17 | 5012-4017 | 22,0 | 24,0 | 15 | 77 | 133 | 64,50 kr. |
|
|
18 | 5012-4018 | 23,0 | 25,4 | 18 | 77 | 179 | 67,00 kr. | ||
19 | 5012-4019 | 23,0 | 26,0 | 18 | 77 | 157 | 67,75 kr. | ||
20 | 5012-4020 | 24,0 | 27,9 | 18 | 77 | 210 | 67,75 kr. | ||
21 | 5012-4021 | 25,0 | 28,0 | 18 | 77 | 222 | 68,50 kr. | ||
22 | 5012-4022 | 26,0 | 30,0 | 21 | 77 | 227 | 70,25 kr. | ||
24 | 5012-4024 | 28,0 | 32,0 | 24 | 77 | 255 | 80,00 kr. | ||
25 | 5012-4025 | 30,0 | 34,0 | 24 | 77 | 315 | 95,25 kr. | ||
26 | 5012-4026 | 30,0 | 35,4 | 24 | 77 | 310 | 107,00 kr. | ||
27 | 5012-4027 | 30,0 | 36,0 | 27 | 77 | 352 | 111,00 kr. | ||
28 | 5012-4028 | 32,0 | 37,9 | 27 | 77 | 351 | 115,00 kr. | ||
29 | 5012-4029 | 32,0 | 38,0 | 27 | 77 | 331 | 117,00 kr. | ||
30 | 5012-4030 | 34,0 | 40,0 | 30 | 77 | 373 | 134,00 kr. | ||
31 | 5012-4031 | 36,0 | 41,0 | 32 | 77 | 390 | 153,00 kr. | ||
32 | 5012-4032 | 36,0 | 42,0 | 33 | 77 | 420 | 158,00 kr. |
